Screw Weighing Feeder

Screw Weighing Feeder

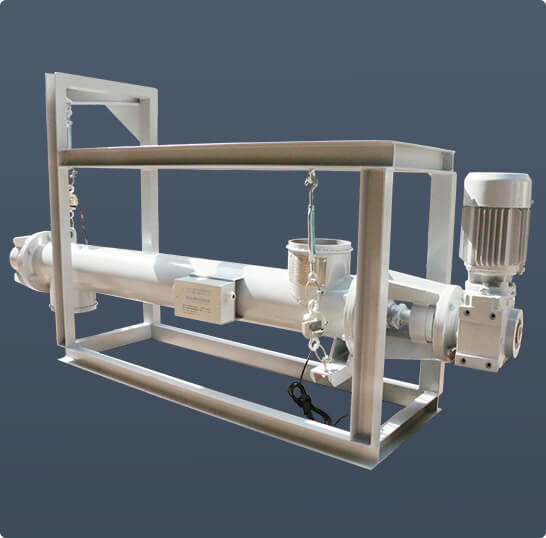

Screw weighing feeder is a kind of measuring equipment for feeding control, dynamic weighing and continuously conveying powder materials.
Has two types: single tube, single layer and double tubes, double layers. Single tube can realize weighing and conveying at the same time. Double tubes the above undertakes steady flow an conveying, and the bottom undertakes weighing and conveying that can have better steady flow effect and save spaces.

Applicable:Power, metallurgy, coal, chemical industry, ports, building materials, ceramics, food and other powdery and granular materials

Accuracy:±2%

Flow Rate:2~160m³/h

Documentation Download

PRODUCT FEATURES

1. FB-DMC-01A smart controller is adopted;
2. AChieve dynamic and continuous measuring;
3. Automatically perform zero measurement and system calibration;
4. The control instrument can display instantaneous flow rate, total accumulation and can also transmit signal at the same time;
5. Can achieve continuous batch feeding;
6. With the function of over-load alarm;
7. Self-diagnosis function and can be connected to DCS system.

RELATED VIDEOS

Parameters

TypeWeighing RangeDiameterSingle Tube Center DistanceCenter Distance of Double Tubes Inlet and Outlet

FB-DHM160

1.6~8m³/h160mm1000≤L≤3000mm0≤L≤6000mm
FB-DHM2003.6~18m³/h200mm1500≤L≤4000mm0≤L≤8000mm
FB-DHM2506.4~32m³/h250mm1500≤L≤5000mm0≤L≤10000mm
FB-DHM3009~45m³/h300mm2000≤L≤5000mm0≤L≤10000mm
FB-DHM40018~90m³/h400mm2500≤L≤5000mm0≤L≤10000mm
FB-DHM50032~160m³/h500mm3000≤L≤5000mm0≤L≤10000mm
